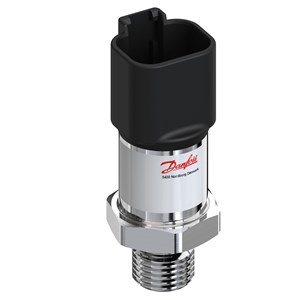

Trasmisor de presión Danfoss-MBS1250 0-250bar 0.5-4.5VR-063G1289
El transmisor de presión MBS 1250 es una solución confiable y precisa para medir presiones en un rango de 0.00 bar a 250.00 bar (0.00 psi a 3625.00 psi). Este dispositivo está diseñado para aplicaciones industriales exigentes, ofreciendo robustez, durabilidad y alta precisión.
| Gross weight | 0.064 Kg |
| Net weight | 0.052 Kg |
| Volume | 0.097 Liter |
| EAN | 5702423259762 |
| + output | Pin 4 |
| + supply | Pin 2 |
| – common | Pin 1 |
| Accuracy, typical [±FS%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Burst pressure [bar] | 2500 bar |
| Burst pressure [psig] | 36250 psig |
| China RoHS compliance | Yes |
| Comments | PE ON PIN 3 |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Compensated temp. range [°F] [max] | 257 °F |
| Compensated temp. range [°F] [min] | -40 °F |
| EEE category | 5 small equipment (any external dimension 50 cm) |
| Electrical conn. comments | Au coated |
| Electrical conn. Male/Female | Male |
| Electrical connection | Deutsch |
| Electrical connection size | 4 pin |
| Electrical connection standard | DT04 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 063G4289 |
| In scope of WEEE | Yes |
| In scope of WEEE and contain batteries | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 750 bar |
| Overload pressure max. [psig] | 10800 psig |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 250 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 3625 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 48 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | No |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1250-3416-C3GB04 |
| Supply voltage [V] DC [max] | 6 V |
| Supply voltage [V] DC [min] | 5 V |
| Type | MBS 1250 |
| UK RoHS compliance | Yes |
