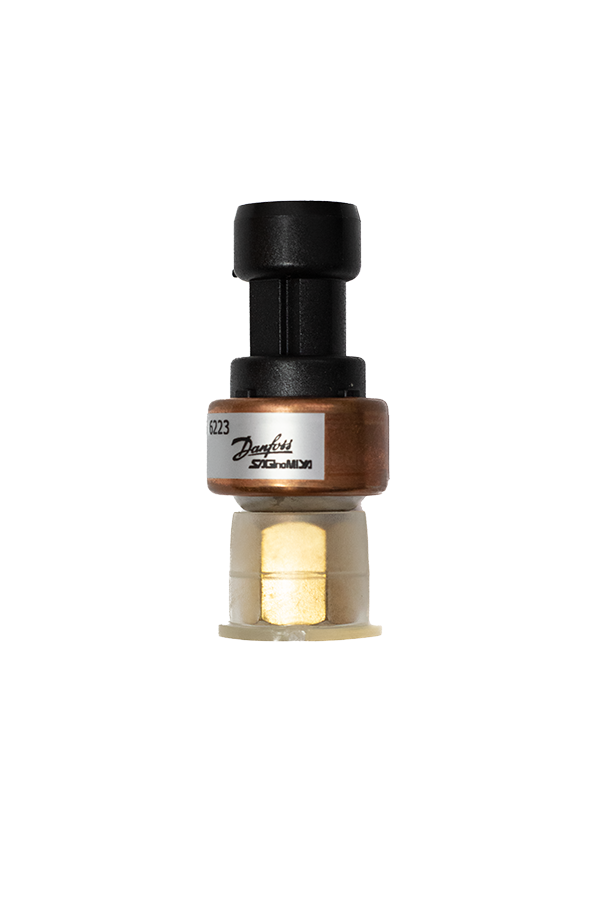

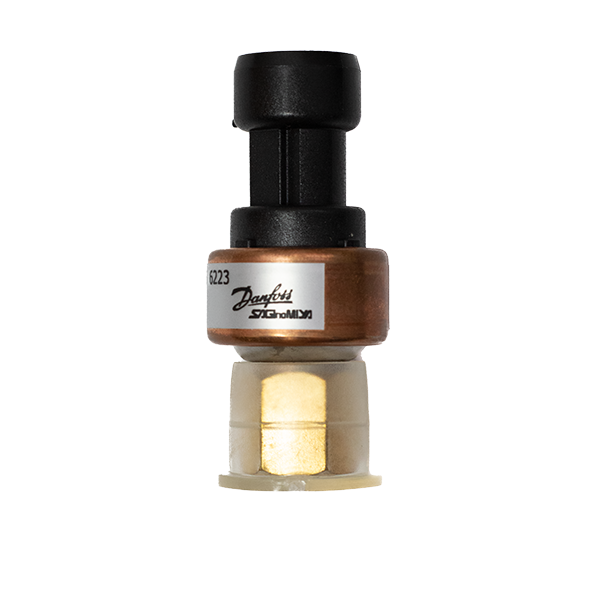

Trasmisor de presión Danfoss NSK 1.00 bar – 46.00 bar – 061H5123
Transmisor de Presión Danfoss NSK 1.00-46.00 bar – 061H5123: Medición precisa de presión, diseño robusto y alta fiabilidad para aplicaciones industriales exigentes.
Trasmisor de presión Danfoss NSK 1.00 bar – 46.00 bar
Medición precisa de presión, y alta fiabilidad para aplicaciones industriales exigentes.
| Gross weight | 0.071 Kilogram |
| Net weight | 0.07 Kilogram |
| Volume | 0.546 Liter |
| EAN | 5702428274906 |
| + output | Pin 2 |
| + supply | Pin 1 |
| – common | Pin 3 |
| Accuracy, max. [±FS%] | 1.5 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| China RoHS compliance | Out of scope |
| EEE category | 5 small equipment (any external dimension 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 061H5121 |
| In scope of WEEE | Yes |
| In scope of WEEE and contain batteries | No |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 50 bar |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 14 mm |
| Pressure connection notes | With Schrader Depressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 46 bar |
| Pressure range [bar] [min] | 1 bar |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Quantity per packing format | 20 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | No |
| Refrigerants | R1234yf R1234ze(E) R134a R32 R404A R407C R407H R410A R449B R450A R452B R454A R454B R454C R455A R513A |
| Specification key | NSK-BE046I-U005 |
| Supply voltage [V] DC | 5 V |
| Type | NSK |
| UK RoHS compliance | Out of scope |
