Controles RT 017-436966

Controles RT 017-436966 Somos distribuidores de Controles RT en Bogotá, Colombia

RT controls are used in general industrial and marine sectors.
The RT temperature switch series consist of a variety of ordinary room temperature switches and remote sensor temperature switches including neutral zone temperature switches. RT temperature switches are generally recommended for applications where safety or economical consequences are critical factors.
RT controls have been in service for more than 60 years.

  • Temperature ranges: – 60°C to 300°C
  • Replaceable contact system
  • Also available with gold plated contact systems
  • Fail-safe
  • Adjustable differential
  • Enclosure IP66
  • Available with min. and max. reset function (IP54)
  • Available with dead zone
  • Available with all relevant marine approvals



Characteristic

Value

TypeAccessory
Weight0.106 Kg
ApplicationKP
ApplicationRT
EAN5702428021012
External sensor pocket dia. [mm]10,7 mm
Int. sensor pocket dia. [mm]9,5 mm
Packing formatMulti pack
Parts includedGasket set
Pressure inlet connection size [in]1/2
Pressure inlet connection std.ISO 228-1
Pressure inlet connection typeG
Pressure inlet connectionG 1/2
Pressure inlet Internal/ExternalExternal
Protection tube materialStainless steel
Quantity per packing format10 PC
Sensor pocket conn. lgth [mm]22 mm
Sensor pocket length min. [mm]97 mm

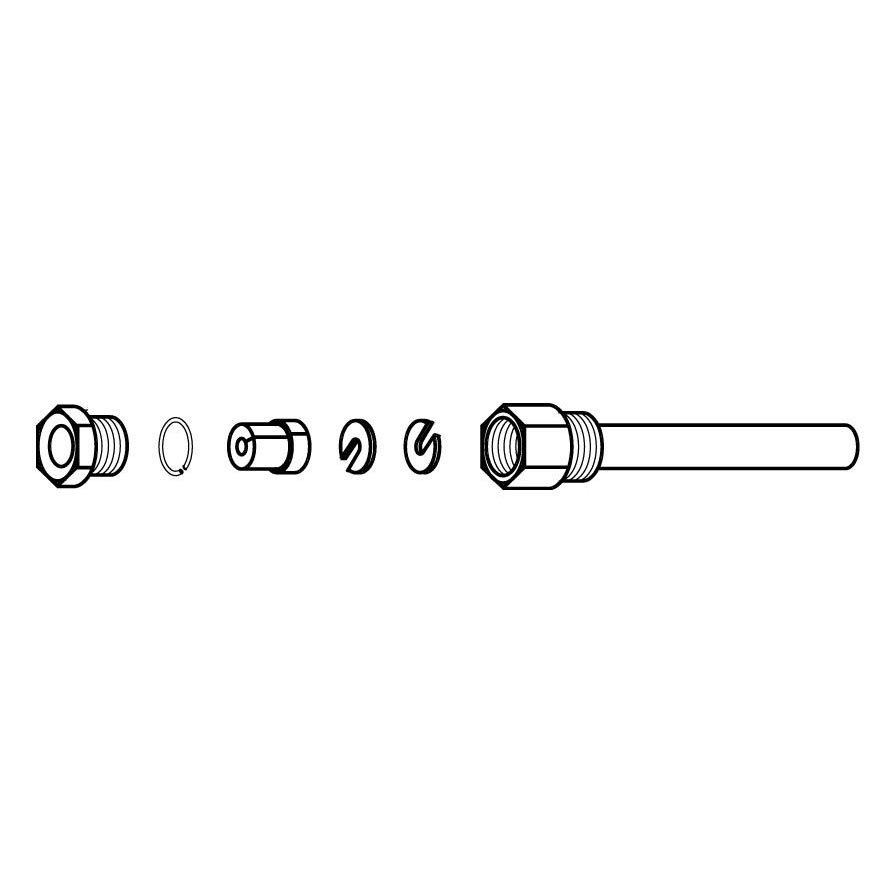

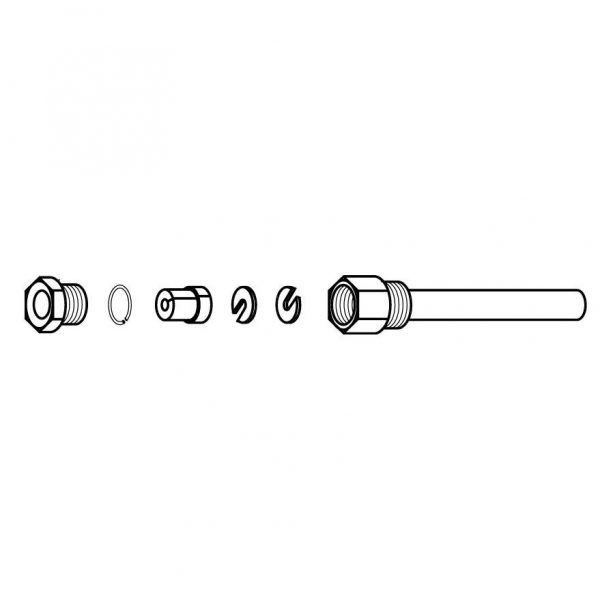

Type designationSensor pocket
